Can you name these gaskets, seals and O-rings?
Each gasket has a letter or number to identify it. Some of them have a "x2" or other underneath
it to identify how many I have (and, presumably, comes in the various gasket sets).
Please beware, the images are high quality and are fairly large - they will suck to download
on dialup, but will be easier to identify.

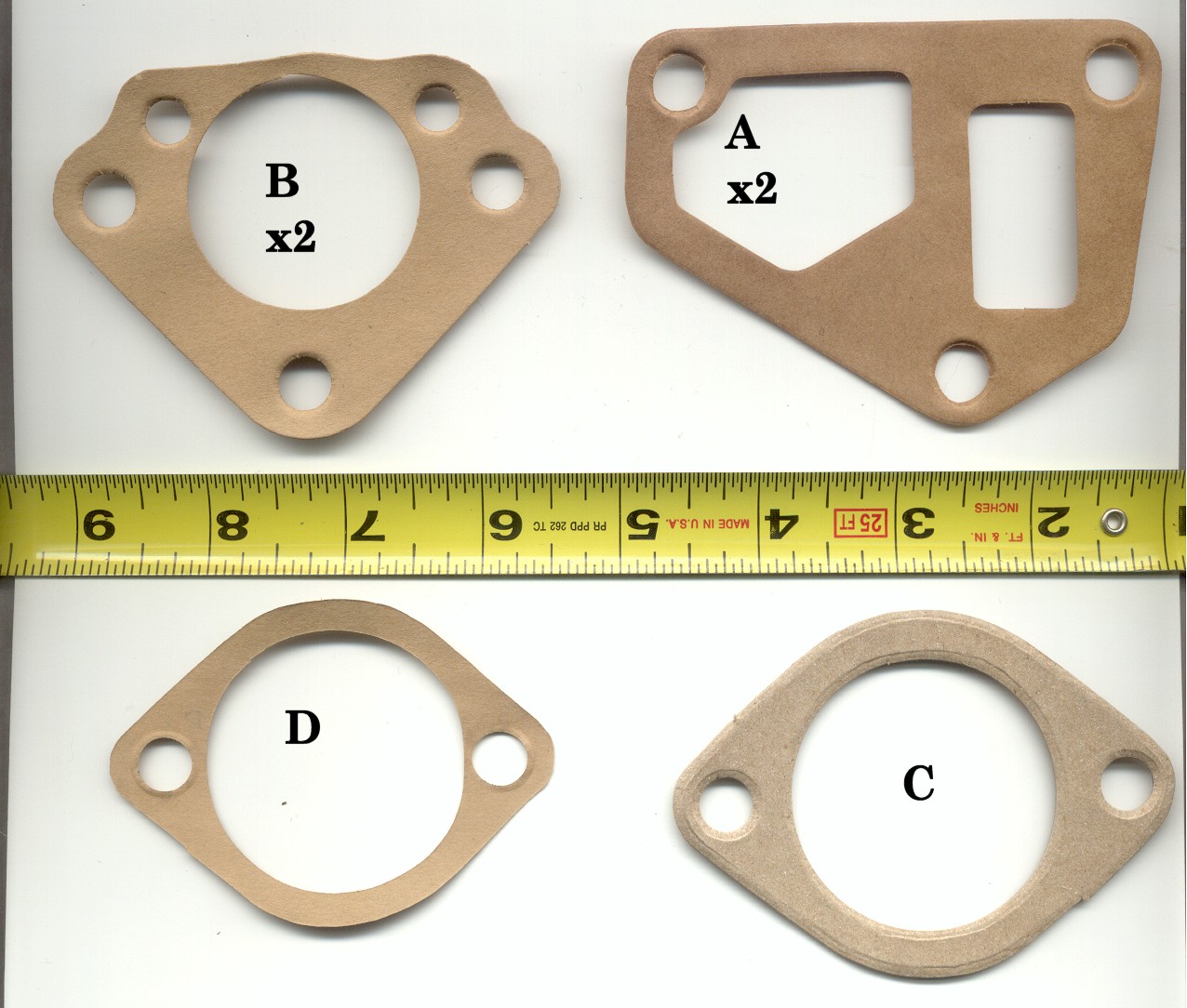

| Gaskets A through D | |
| A | Water pump housing to block gasket |
| B | Gasket on carburettor, air cleaner side |
| C | Thermostat? Carb to intake manifold? |
| D | Distributor pedestal spacing gasket |
| Gaskets E through J | |
| E | Thermostat housing to block |
| F | MGB SU HS4 carb to spacer to manifold gaskets |
| G | ? |
| H | ? |
| I | SU HS6 carb to manifold (1.75" throat) |
| J | Zenith Stromberg carb to manifold (1.5" throat) |

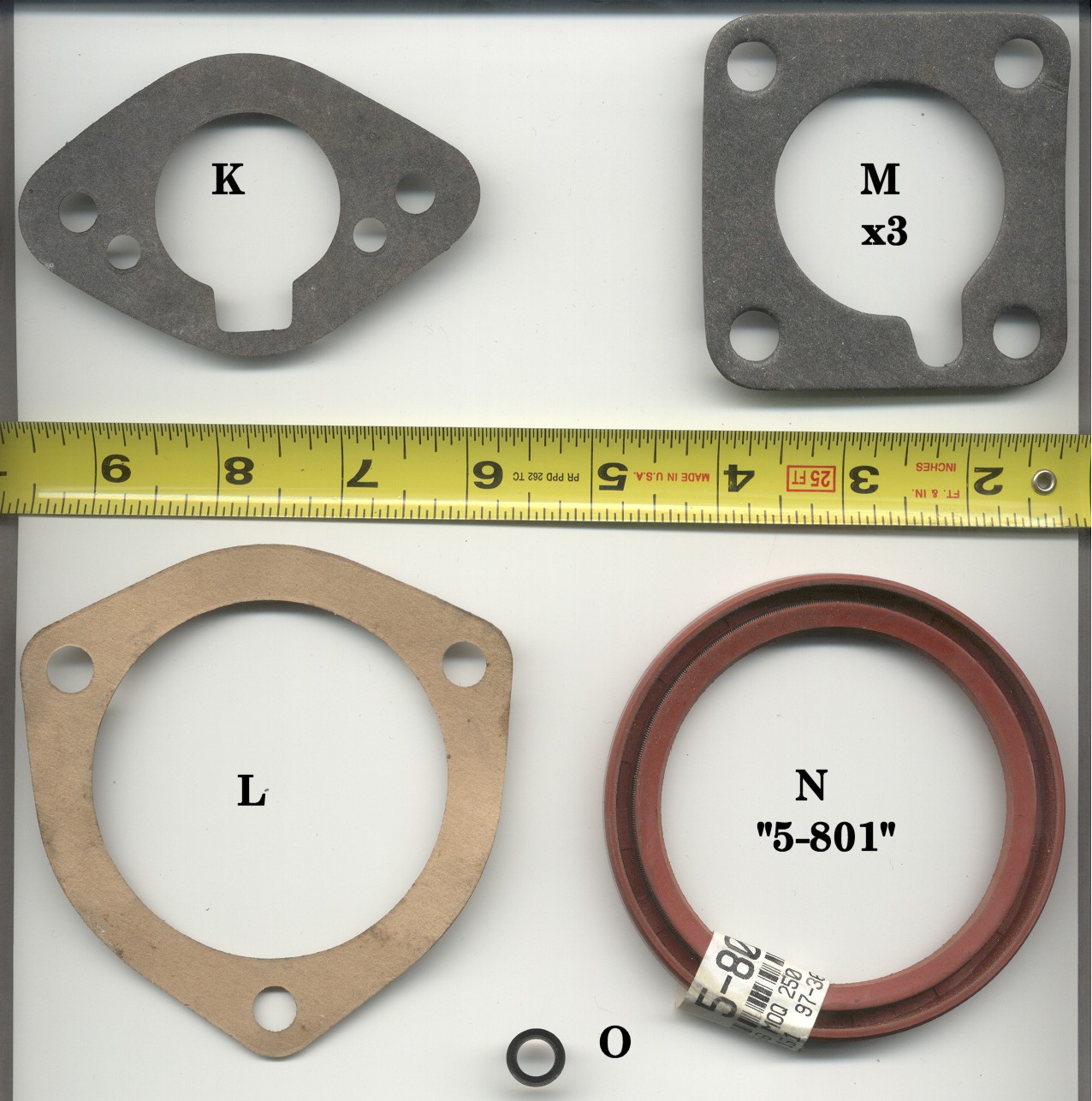

| Gaskets K through O | |
| K | Zenith Stromberg carb to air filter (1.5" throat) |
| L | Water pump to housing gasket |
| M | SU HS6 carb to manifold (1.75" throat) |
| N | Main rear seal |
| O | ? |
| Gaskets P through S (Zenith Stromberg Carburettor rebuild kit) | |
| P | SU HS4 carb to spacer to manifold gasket |
| Q | Same as K (Oops) |
| R | ? |
| S | ? |
| Gaskets T through 5 (Carburettor rebuild kit) | |
| T | ? |
| U | Zenith Stromberg choke housing assembly gasket (Automatic choke only) |
| V | Zenith Stromberg choke assembly gasket (Manual choke only) |
| W | Zenith Stromberg choke cover/top plate gasket (Automatic choke only) |
| X | Zenith Stromberg fuel/air ration adjustment block to carb body seal |
| Y | Zenith Stromberg bypass valve gasket |
| Z | Zenith Stromberg bypass valve gasket |
| 1 | ? |
| 2 | ? |
| 3 | ? |
| 4 | Zenith Stromberg float champer bottom plug seal? |
| 5 | Zenith Stromberg water choke jacket seal? |
